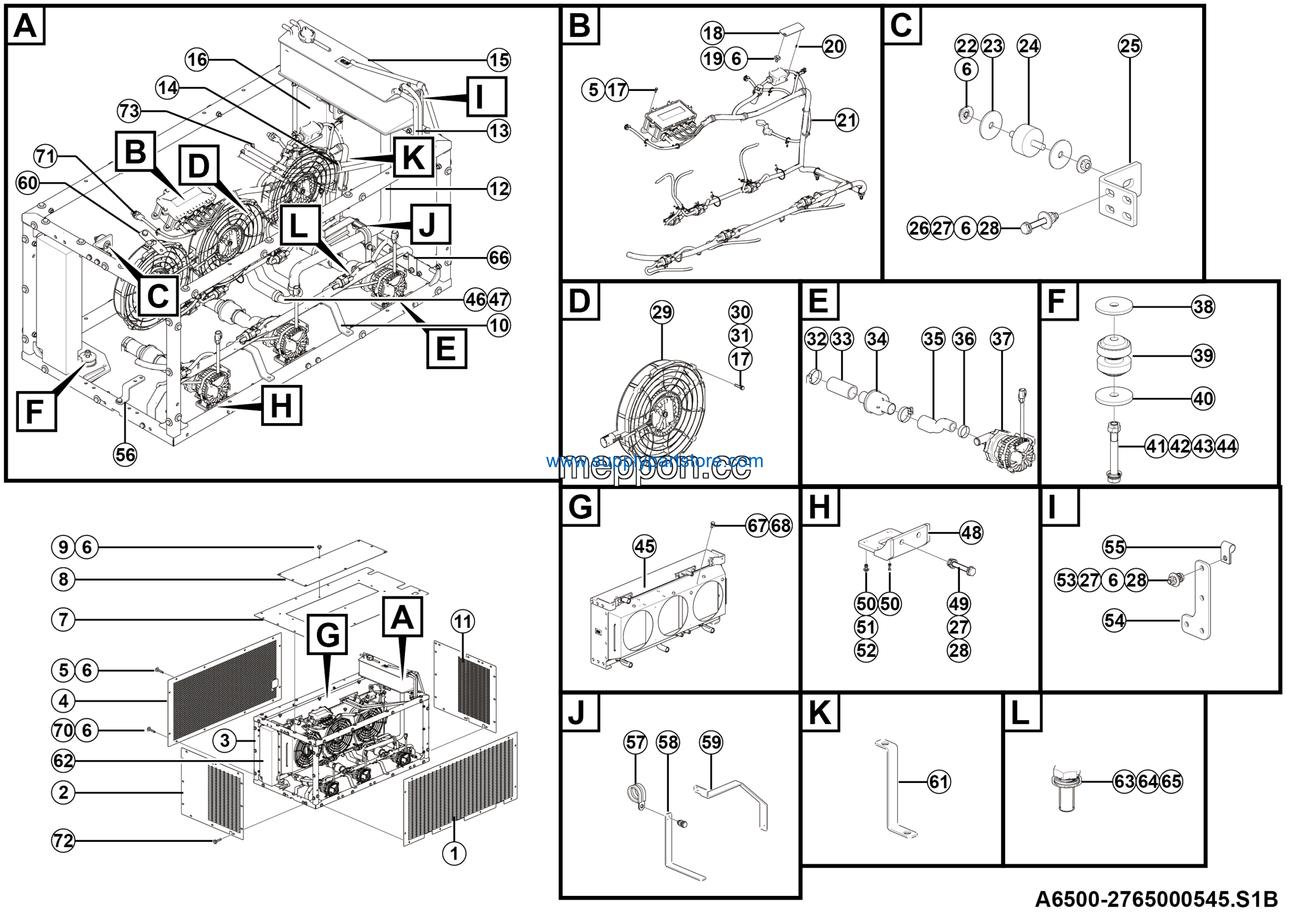

LGMG RTH100 2025 – Motor and controller thermal mgnt delivered assembled – A6500-2765000545.S1B
Category: 2025 > RTH100 > R1000Y3A0A222
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Bracket 170*81*30 | 27650001031 | 2 |
| 2 | Rh blanking plate 770*647*1.5 | 27650002311 | 1 |
| 3 | Hose 25*5 | 27650000681 | 1 |
| 4 | Breather hose 10*3.5-1100 | 27650000731 | 2 |
| 5 | Double hole R-type clamp R-D21*2-M10 | 4190707977 | 2 |
| 6 | Expansion tank lg65-pzsx-01 | 4110708206 | 1 |
| 7 | Sealing sponge 530*150*80 | 27650003201 | 1 |
| 8 | Washer GB97.1-6flZnyc-300HV-480 | 4015010284 | 16 |
| 9 | Fixing bracket wldmt | 27030161001 | 1 |
| 10 | Bolt GB5783-M10*25flznyc-8.8-480 | 4011010722 | 8 |
| 11 | Blanking plate 1410*647*1.5 | 27650002141 | 1 |
| 12 | Screw GB818-M4*12flZnyc-4.8-480 | 4014010134 | 2 |
| 13 | Motor and controller thermal mgnt harness lg-rgl-02 | 4110708093 | 1 |
| 14 | Nut GB6170-M10flZnyc-8-480 | 4013010289 | 4 |
| 15 | Shim 50*11*3 | 27030158831 | 4 |
| 16 | Shock absorber w/ stud 521580 | 4190709517 | 2 |
| 17 | Bent plate 100*90*60 | 27650003331 | 2 |
| 18 | Bolt GB5783-M10*70flZnyc-8.8-480 | 4011011342 | 4 |
| 19 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 40 |
| 20 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 22 |
| 21 | Brushless fan f82-24bl8516-19s | 4110708133 | 3 |
| 22 | Lh blanking plate 770*645*1.5 | 27650002441 | 1 |
| 23 | Bolt GB5783-M6*30flznyc-8.8-480 | 4011010717 | 12 |
| 24 | Washer GB93-6flZnyc-65Mn-480 | 4015010375 | 12 |
| 25 | Hose clamp JB8870-D50 | 4017000009 | 10 |
| 26 | Connecting hose 38*5*100 | 27030158582 | 3 |
| 27 | Water filter 1021000403 | 4110707072 | 3 |
| 28 | Hose 38-25*5 | 27650000661 | 3 |
| 29 | Clamp φ20-φ40 | 4190708281 | 8 |
| 30 | Brushless PWM water pump 240HP | 4190708723 | 3 |
| 31 | Shock absorber spacer 60*14*5 | 27650002651 | 4 |
| 32 | Shock absorber MDS55-45 | 4110703148 | 8 |
| 33 | Radiator bracket wldmt | 27650003301 | 1 |
| 34 | Plate | 27030134891 | 4 |
| 35 | Bolt GB5782-M12*95flZnyc-10.9-480 | 4011011021 | 4 |
| 36 | Double sack wedge lock washer HF12 | 4190708410 | 4 |
| 37 | Washer GB97.1-12flZnyc-300HV-480 | 4015010340 | 4 |
| 38 | Nut GB6185.1-M12flZnyc-10-480 | 4013010379 | 4 |
| 39 | Radiator assy lg-2765-01 | 4110707960 | 1 |
| 40 | Connecting hose 25*5 | 27030163251 | 2 |
| 41 | Water-filling tee wldmt | 27650000421 | 1 |
| 42 | Water pump bracket wldmt | 27650000341 | 3 |
| 43 | Bolt GB5783-M10*65flZnyc-10.9-480 | 4011011565 | 12 |
| 44 | Blanking plate 1410*647*2 | 27650002391 | 1 |
| 45 | Bolt GB5783-M10*60flZnyc-10.9-480 | 4011011744 | 57 |
| 46 | Washer GB96.1-6flZnyc-300HV-480 | 4015010296 | 12 |
| 47 | Nut GB6185.1-M6flZnyc-8-480 | 4013010414 | 12 |
| 48 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 6 |
| 49 | Bracket 180*80*6 | 27650000691 | 2 |
| 50 | Clamp R-D16-M10 | 4190707967 | 4 |
| 51 | Bracket 130*55*30 | 27650000711 | 1 |
| 52 | Pipe clamp R-D40-M10 | 4190707973 | 1 |
| 53 | Bracket 180*160*25 | 27650000751 | 1 |
| 54 | Bracket 270*230 | 27650000781 | 1 |
| 55 | Bolt GB5783-M6*20flznyc-8.8-480 | 4011010744 | 14 |
| 56 | Bracket 120*40 | 27650002411 | 2 |
| 57 | Bracket 143*20*80 | 27650002431 | 1 |
| 58 | Sealing sponge 530*150*80 | 27650003191 | 1 |
| 59 | Bolt GB5783-M10*25EpZn-8.8 | 4011000082 | 1 |
| 60 | Double sack wedge lock washer HF10 | 4190708409 | 1 |
| 61 | Washer GB97.1-10EpZn-300HV | 4015000162 | 1 |
| 62 | Bracket 1330*130*40 | 27650001171 | 1 |
| 63 | Bolt GB5783-M8*20flznyc-8.8-480 | 4011010711 | 1 |
| 64 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 1 |
| 65 | Bolt GB5783-M6*25flZnyc-8.8-480 | 4011010731 | 2 |
| 66 | Washer GB96.1-10flZnyc-300HV-480 | 4015010278 | 82 |
| 67 | Bolt GB5783-M10*55flZnyc-8.8-480 | 4011010952 | 2 |
| 68 | Water temp sensor 1021000271 | 4190709214 | 2 |
| 69 | Bolt GB5783-M10*60flZnyc-8.8-480 | 4011010977 | 1 |
| 70 | Hose clamp JB8870-D20 | 4017000010 | 4 |
| 71 | Upr blanking plate wldmt | 27650002271 | 1 |
| 72 | Maintenance board 1020 * 350 * 1.5 | 27650000261 | 1 |
| 73 | Bolt GB5783-M10*20flZnyc-8.8-480 | 4011010748 | 11 |
