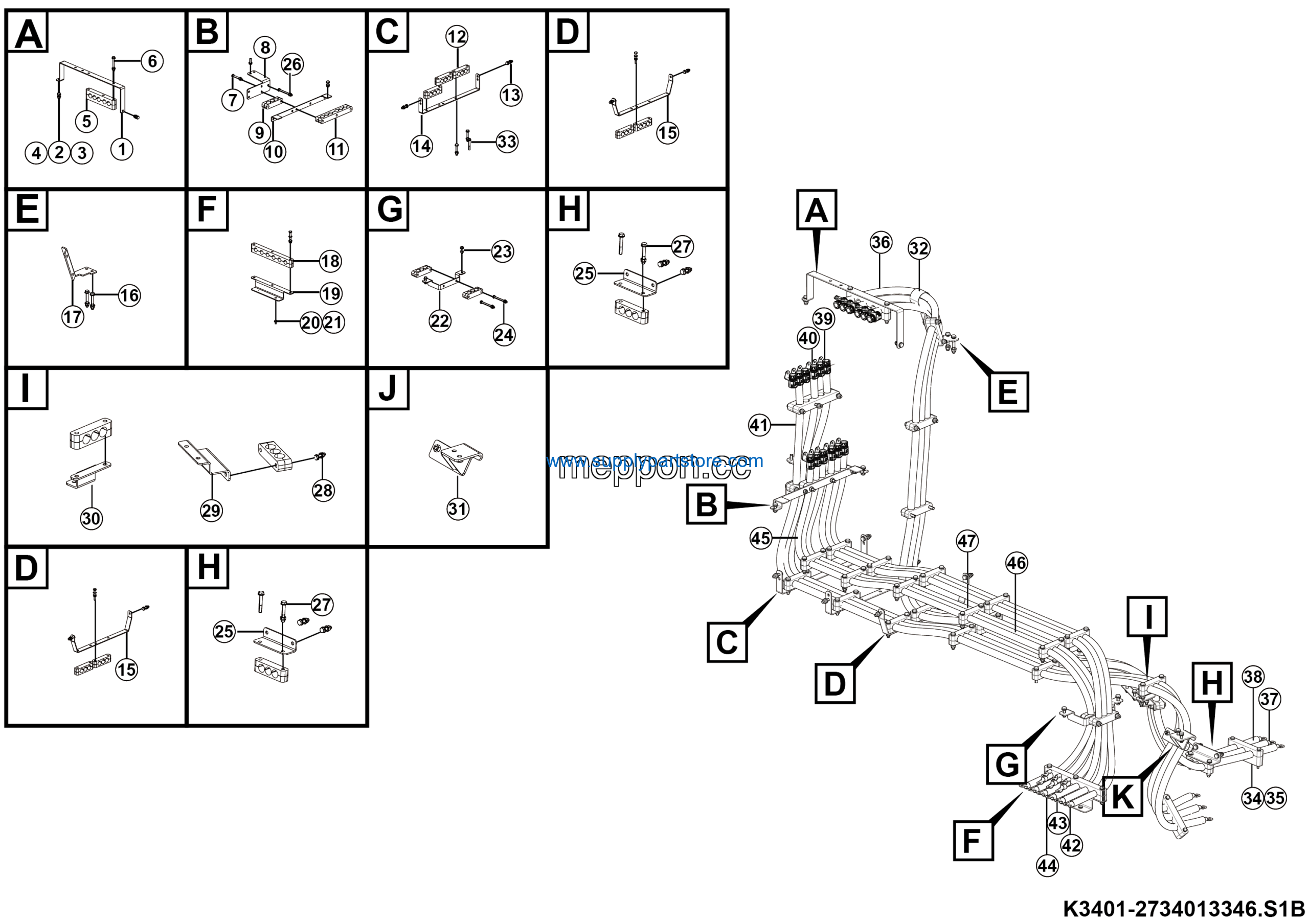

LGMG RTH100 2025 – Motor harness assy – K3401-2734013346.S1B
Category: 2025 > RTH100 > R1000Y3A0A233
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Z-bracket 335*80*4 | 27340131241 | 1 |
| 2 | Pipe clamp 262*30*24（6*25.5-236） | 27340126341 | 2 |
| 3 | Pipe clamp 130*20*30 (70*3) | 27340115151 | 24 |
| 4 | Bolt GB5783-M10*40flZnyc-8.8-480 | 4011010706 | 8 |
| 5 | Bracket 485*100*30 | 27340134501 | 2 |
| 6 | Bracket 485*120*30 | 27340134491 | 1 |
| 7 | Bolt GB5782-M10*70flZnyc-8.8-480 | 4011010825 | 5 |
| 8 | Bracket wldmt | 27340134671 | 1 |
| 9 | Pipe row 332*30*24（6*25.5） | 27340110331 | 2 |
| 10 | Bracket wldmt | 27340130141 | 1 |
| 11 | Bracket 550*170*4 | 27340135051 | 1 |
| 12 | Bolt GB5783-M8*16flznyc-8.8-480 | 4011010970 | 2 |
| 13 | Washer GB97.1-8flZnyc-300HV-480 | 4015010280 | 6 |
| 14 | Bracket wldmt | 27340123601 | 1 |
| 15 | Bolt GB5783-M10*35flZnyc-10.9-480 | 4011010783 | 8 |
| 16 | Bolt gb5783-m10*105flznyc-8.8-480 | 4011011839 | 2 |
| 17 | L-bracket 150*54*40 | 27340135061 | 1 |
| 18 | Bolt GB5782-M10*75flZnyc-8.8-480 | 4011010724 | 3 |
| 19 | Bolt GB5782-M10*60flZnyc-8.8-480 | 4011010734 | 6 |
| 20 | Bolt GB5783-M8*60flZnyc-8.8-480 | 4011010975 | 2 |
| 21 | Bracket wldmt | 27340134721 | 1 |
| 22 | Bolt GB5783-M10*30flznyc-8.8-480 | 4011010707 | 6 |
| 23 | Z-bracket 50*48*30 | 27340135171 | 1 |
| 24 | Bracket wldmt | 27340134871 | 1 |
| 25 | Canvas socketet 510*400-ZD | 4190708678 | 1 |
| 26 | Bolt GB5782-M8*80flZnyc-8.8-480 | 4011011039 | 2 |
| 27 | Pipe clamp 180*40*30(3*28.5-150) | 27340121691 | 1 |
| 28 | Pipe clamp 180*30*24（2*28.5-150） | 27340123272 | 3 |
| 29 | Master drive motor w wire 4325 | 27340133491 | 1 |
| 30 | Master drive motor v wire 4130 | 27340133481 | 1 |
| 31 | Master drive motor u wire 3970 | 27340133471 | 1 |
| 32 | Slave drive motor u wire 3930 | 27340133501 | 1 |
| 33 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 161 |
| 34 | Slave drive motor v wire 3980 | 27340133511 | 1 |
| 35 | Slave drive motor w wire 4030 | 27340133521 | 1 |
| 36 | Generator no.1 u wire 3190 | 27340133531 | 1 |
| 37 | Generator no.2 u wire 3135 | 27340133561 | 1 |
| 38 | Generator no.1 v wire 3080 | 27340133541 | 1 |
| 39 | Generator no.2 w wire 3005 | 27340133581 | 1 |
| 40 | Generator no.1 w wire 3045 | 27340133551 | 1 |
| 41 | Generator no.2 v wire 3085 | 27340133571 | 1 |
| 42 | Nut GB6185.1-M10flZnyc-8-480 | 4013010292 | 71 |
| 43 | Pipe clamp 235*30*30（5*28.5-209） | 27340126331 | 4 |
| 44 | Bolt GB5782-M10*85flZnyc-8.8-480 | 4011011218 | 6 |
| 45 | Bolt GB5782-M10*65flZnyc-8.8-480 | 4011010729 | 46 |
| 46 | Bracket wldmt | 27340126321 | 1 |
| 47 | Pipe clamp 136*20*30（28.5*3） | 27340125251 | 32 |
