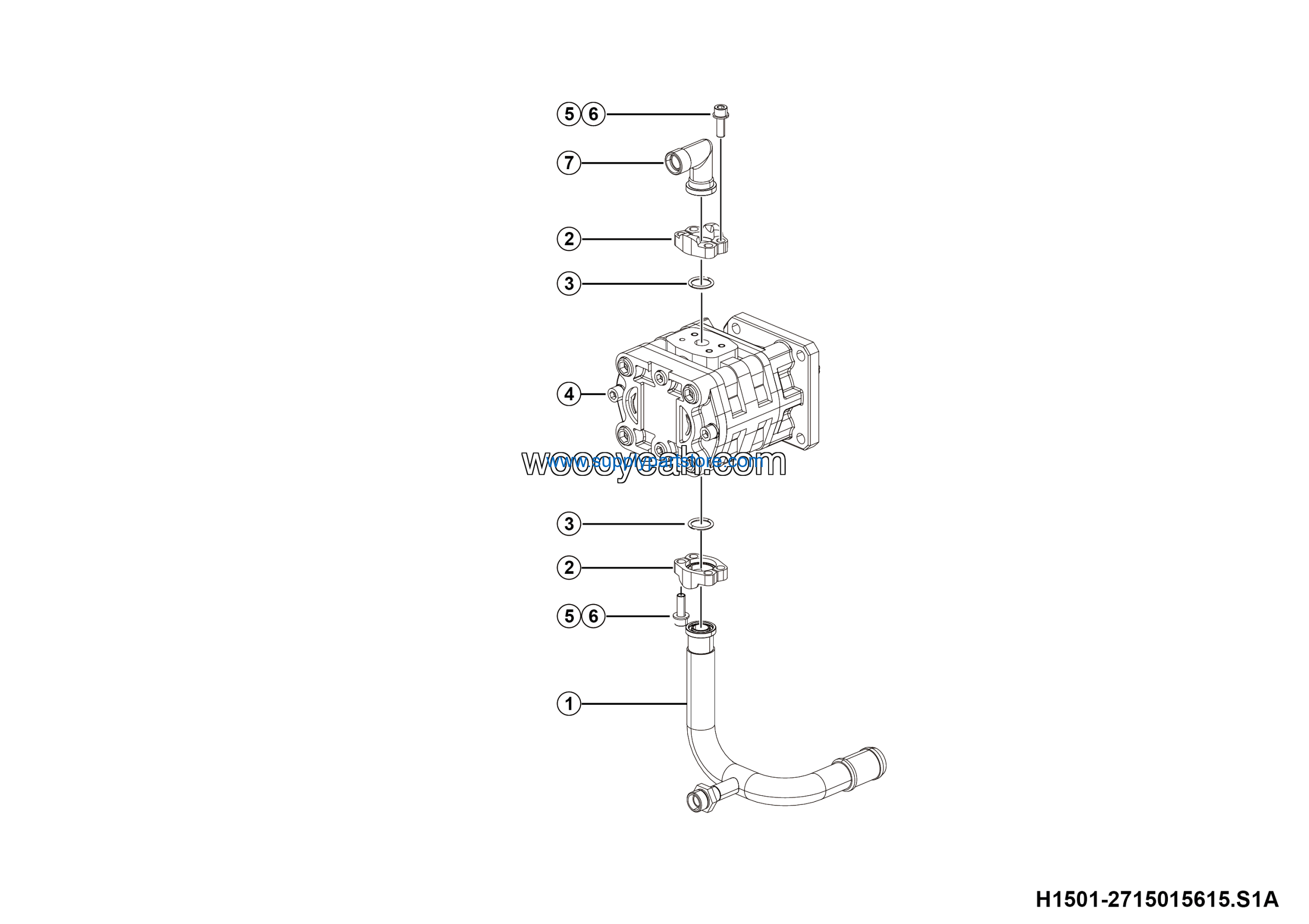

LGMG RTH100 2025 – Pump & motor assy – H1501-2715015615.S1A
Category: 2025 > RTH100 > R1000Y3A0A230
Parts List:
| No. | Part Name | Part Number | Qty |
|---|---|---|---|
| 1 | Oil suction pipe weldment | 27150133421 | 1 |
| 2 | FLANGE LGB117-306400 | 4041000137 | 2 |
| 3 | O-ring GB3452.1-25.0*3.55G | 4030000279 | 2 |
| 4 | Gear pump hgp2040rc | 4120719639 | 1 |
| 5 | Screw GB70.1-M10*30flZnyc-8.8-480 | 4014010441 | 8 |
| 6 | Washer GB97.1-10flZnyc-300HV-480 | 4015010339 | 8 |
| 7 | Flange joint LGB148-03019 | 4041010139 | 1 |
